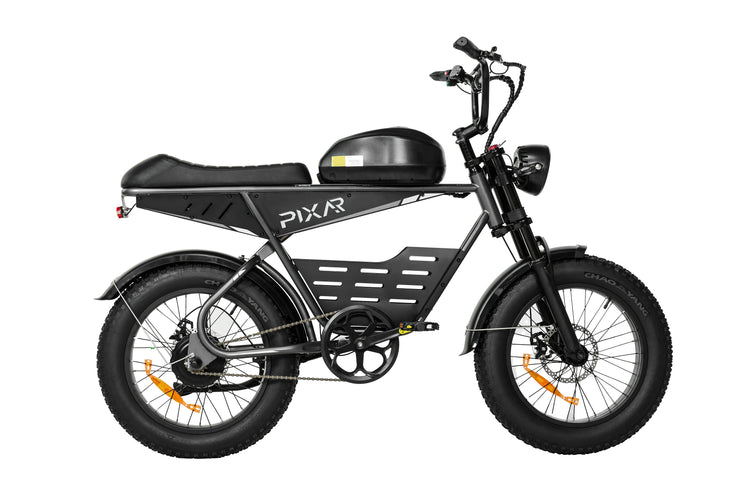

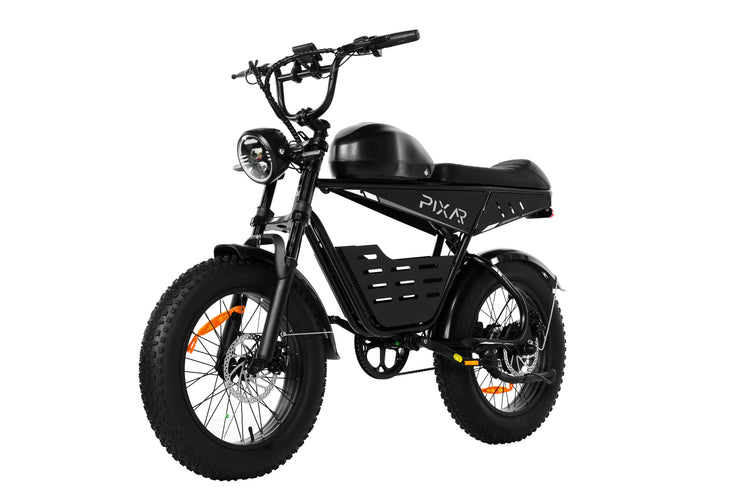

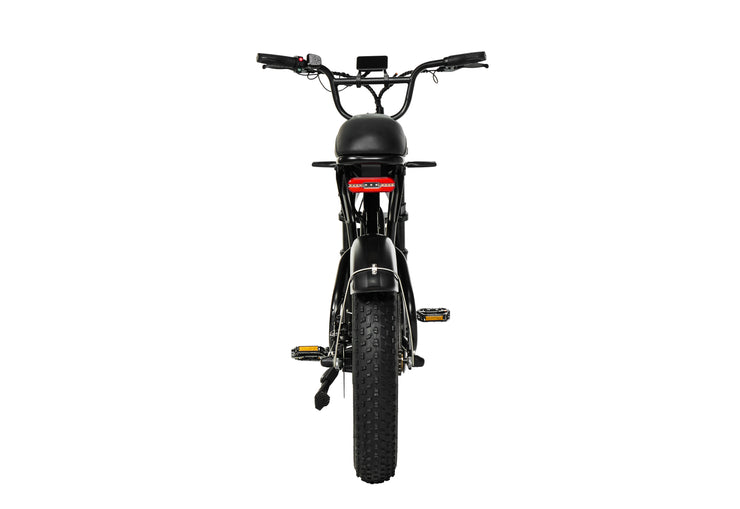

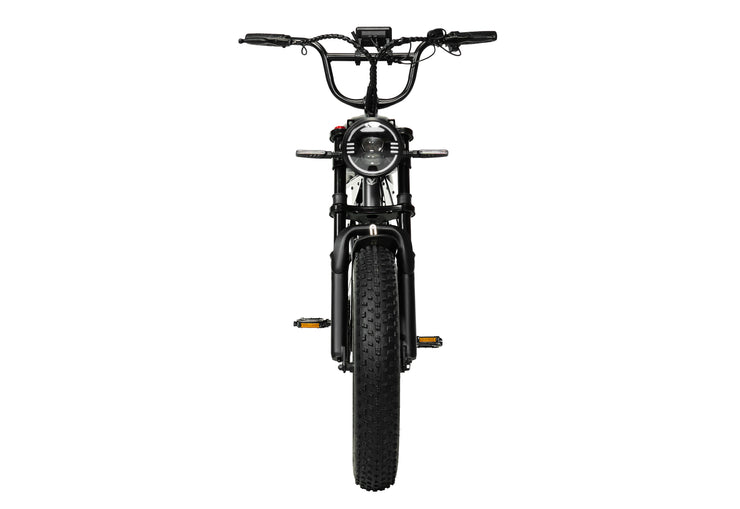

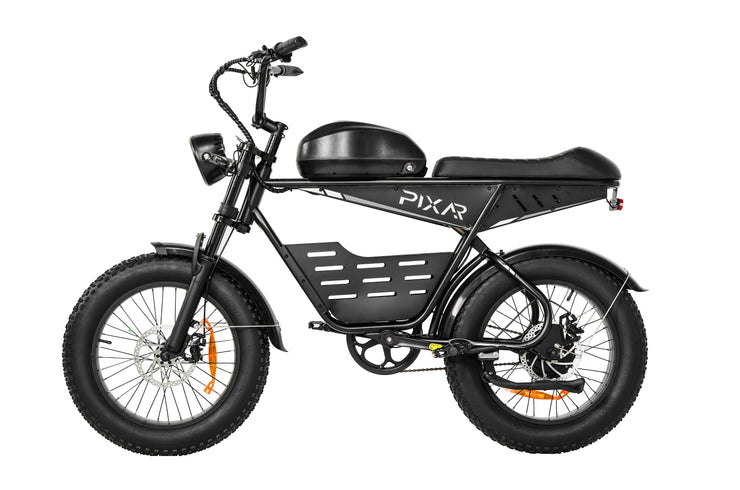

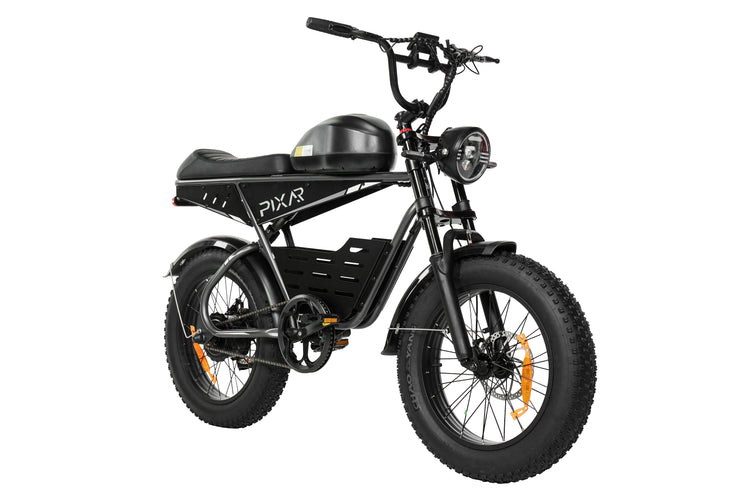

PIXAR SuperV 250W Fat Tyre Retro Electric Bike — 48V 15.6Ah / 30Ah (20mph*)
Bold retro design, fat tyre stability and big battery options for fun, practical rides anywhere.
Key Specifications
Model
SuperV
Motor Rated Power

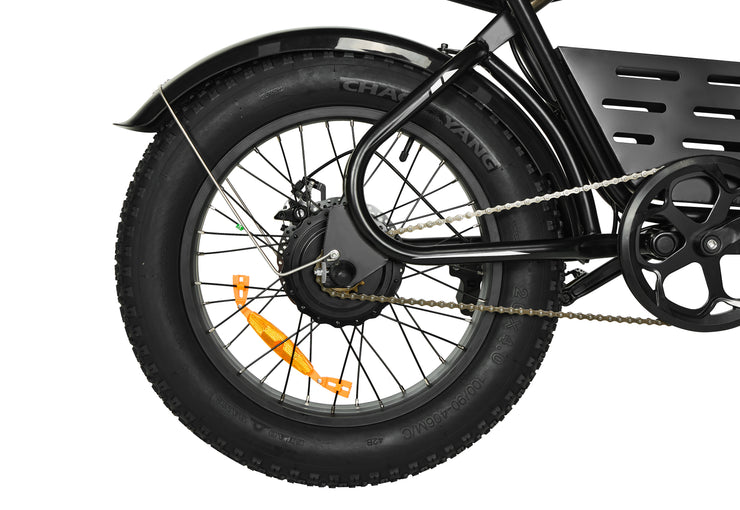

48V 250W High Speed Brushless (rear hub)
Battery Options
48V / 15.6Ah or 30Ah (EVE lithium)
Charger
54.6V / 2A, ~10 hours
PAS
5 assist levels
Riding Modes
Electric, PAS, Pedal
Brakes
Front & Rear Disc Brakes
Tyres

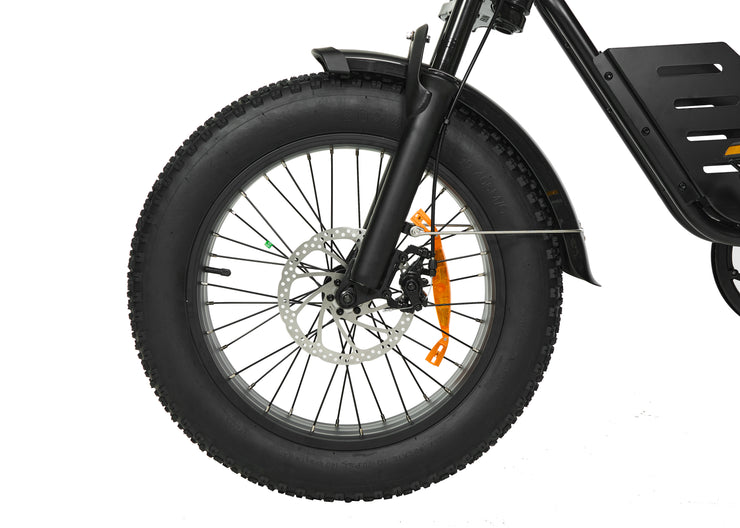

20×4.0" Chaoyang fat tyres
Lighting
Front & Rear LED
Fenders
Front & Rear included
Type
Fat tyre retro e-bike
Top Speed
25 km/h default • Unlockable to 32 km/h (20 mph)*
Range
20–50 miles (≈32–80 km)** depending on battery and conditions
Gears
Single speed
Sensor
Speed sensor (12 mag)
Frame
High quality steel alloy
Suspension
Front fork
Maximum Load
100 kg (recommended)
Display

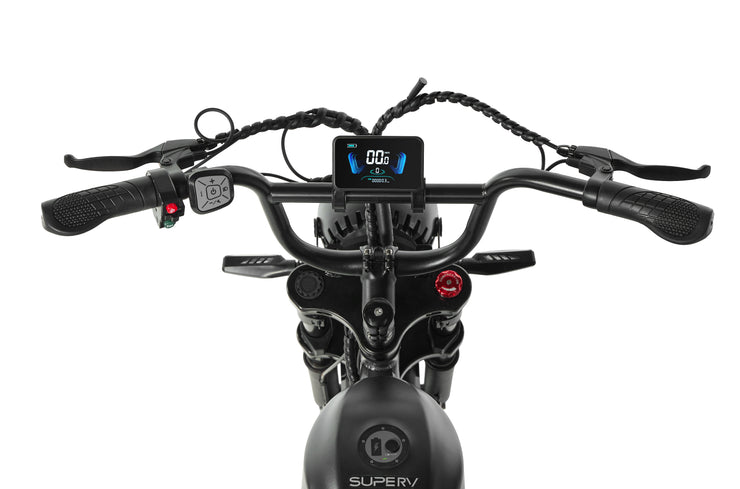

Multifunction LCD
Climbing Ability
Up to 25° (conditions dependent)
Waterproof Grade
IP54
Accessory
Storage basket
Colour
Black
Net / Gross Weight
46 kg / 53 kg
Rider Height
155–190 cm
Bike Size
175 × 69 × 120 cm
Package Size
145 × 30 × 94 cm
In the Box
Bike, Owner’s manual, Specs card, Charger, Tool kit, Pedals, Throttle, Keys
Battery Upgrade
30Ah option available
* Unlock speed is for private property use only. Keep 25 km/h limit for public roads.
** Range varies with battery size, rider weight, terrain, temperature, tyre pressure and speed.
** Range varies with battery size, rider weight, terrain, temperature, tyre pressure and speed.
Frequently Asked Questions
What is the top speed? Can it be unlocked?
Default is 25 km/h (15.5 mph) for road use. You can unlock up to 32 km/h (20 mph) for private property riding.
Is it legal to ride unlocked on public roads?
No. In the UK, e-bikes must remain limited to 25 km/h and 250W on public roads to stay road legal. Higher speeds are for private land only.
What range should I expect?
20–50 miles (≈32–80 km) per charge depending on battery (15.6Ah or 30Ah), rider weight, terrain, temperature, tyre pressure and speed.
How long does charging take?
About 10 hours using the included 54.6V / 2A charger.
Which battery options are available?
Two: 48V / 15.6Ah (standard) or 48V / 30Ah (extended range). The upgrade fits the same compartment.
What is the maximum rider weight?
Recommended up to 100 kg for best performance and comfort.
Is it water resistant?
Yes, IP54 rated, fine for light rain and wet roads. Avoid submersion and pressure washing.
Does it have a throttle?
A throttle is included in the box. Use of a throttle on public roads may require additional approvals, follow local regulations. PAS riding keeps it UK legal.
Can it climb hills?
Yes, up to about 25° depending on rider weight and gradient. Use higher PAS for best results.
Is the bike foldable?
No, SuperV features a rigid retro frame designed for stability and durability.
