Specifications
Battery | 48V 14AH |
---|---|

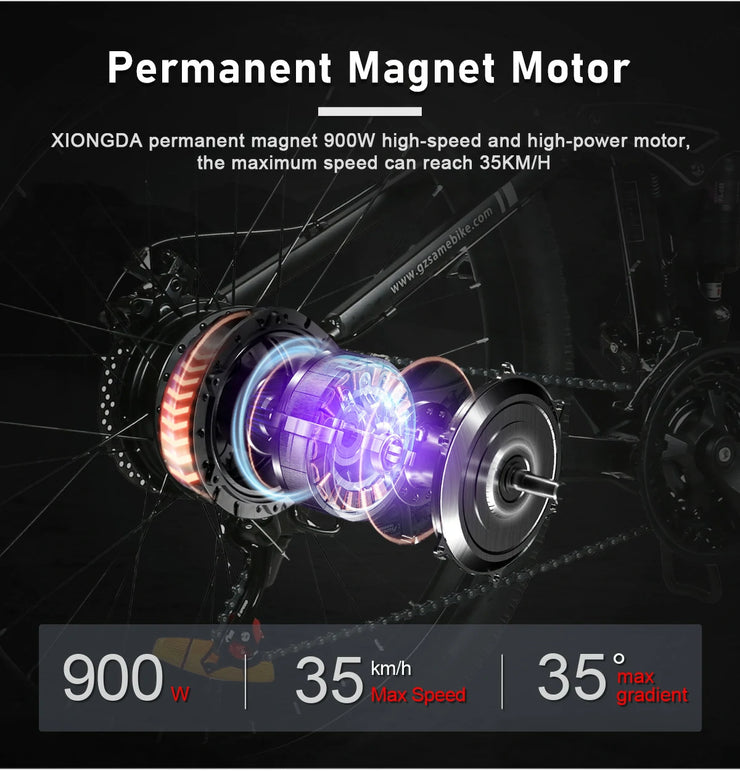

Motor | 900W |
Pure electric mode | 40 KM |
Tires | 26×2.35″ |
Shifter | Shimano 21-Speed |
Brake | Hydraulic disc |
Throttle | Thumb |
Frame | 6061 Aviation aluminum |

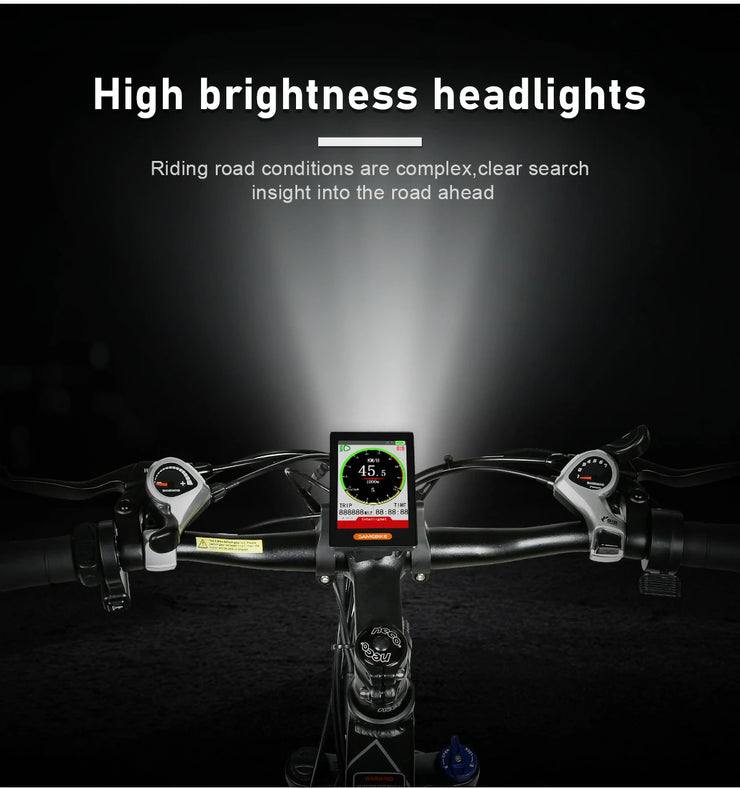

Display | Color LCD |
Payload | 180 kg |
Folded Size | 1.02×0.40×0.96 m |
Battery Type | Ternary lithium-ion |
Max speed | 25 KM/H |
Max range | 50+50 KM |
Foldable | Yes |
Suspension | Adjustable front & rear |
Pedal levels | 5 |
USB Charger | Yes |
Charging Time | 4–6 hours |
Weight | 24 kg |
Overall Size | 1.81×0.65×1.05 m |
Size & Fit

A – Total length | 69″ |
---|---|
B – Handlebar height | 40.6″ |
C – Wheelbase | 44.5″ |
D – Min seat height | 32″ |
E – Max seat height | 38.2″ |
F – Chain stay length | 20″ |
G – Standover height | 33″ |
H – Reach | 23.6″ |
I – Wheel diameter | 27.2″ |
J – Head tube length | 5.5″ |
K – Handlebar length | 27.6″ |
Legal Compliance
- Max speed set to 25 KM/H per EU/UK rules.
- Motor power coded (e.g. “500D”) to meet regs.
- Detachable throttle – remove for compliance or install for pure-electric.
- CE & UKCA certified via ECM.
- All bikes come with 1 year warranty.
