| Specification | Detail |
|---|---|

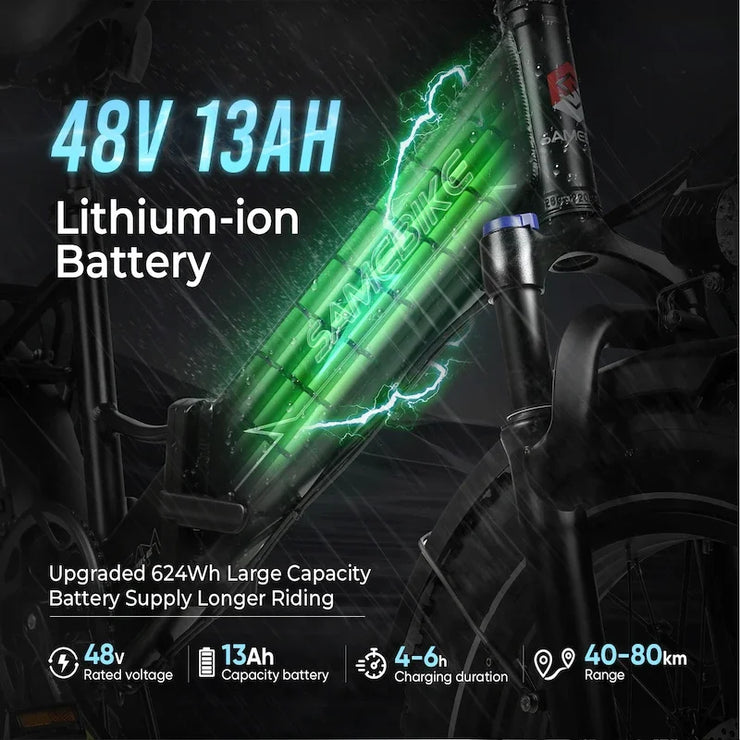

| Battery | 48 V / 13 Ah Li-ion (624 Wh) — 4–6 h charge, 40–80 km range |

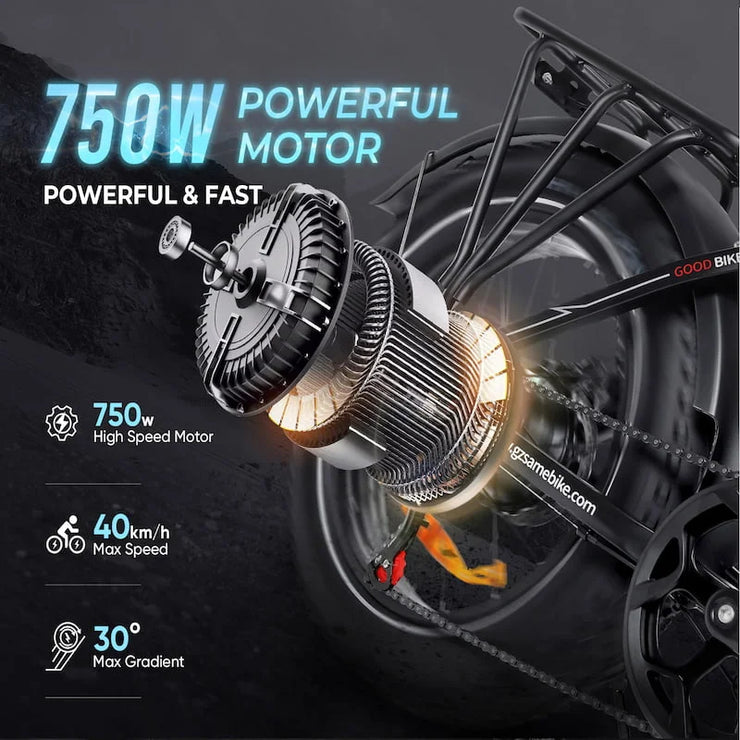

| Motor | 750 W hub motor — max speed 40 km/h, max gradient 30° |

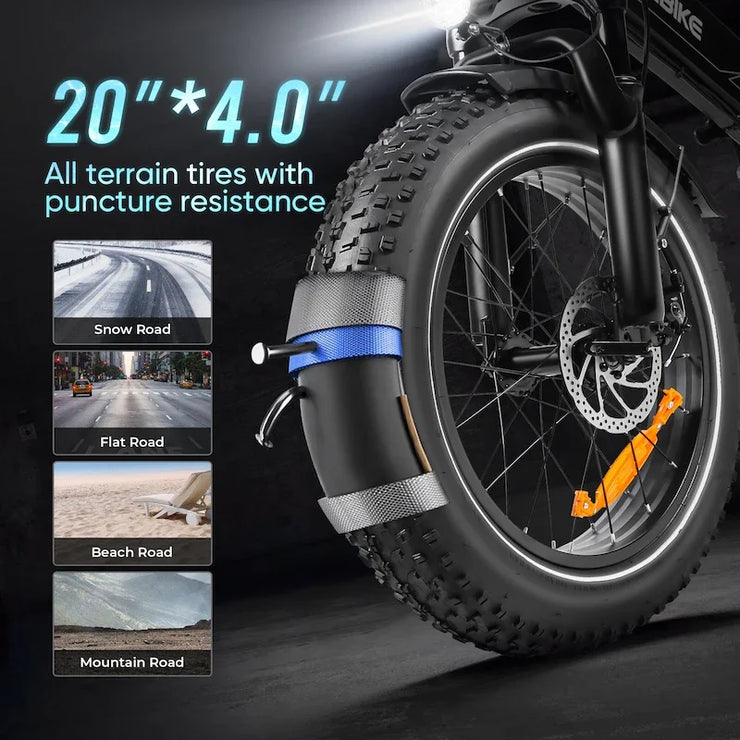

| Tires | 20″ × 4.0″ fat, puncture-resistant all-terrain |

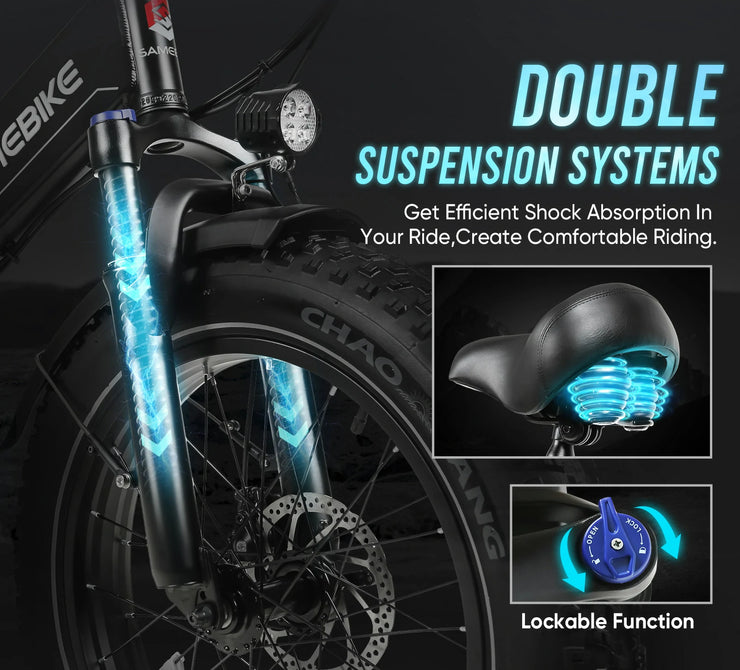

| Suspension | Front-fork + seat dual shock absorption, lockable |
| Gears & Brakes | 7-speed Shimano, mechanical disc brakes |

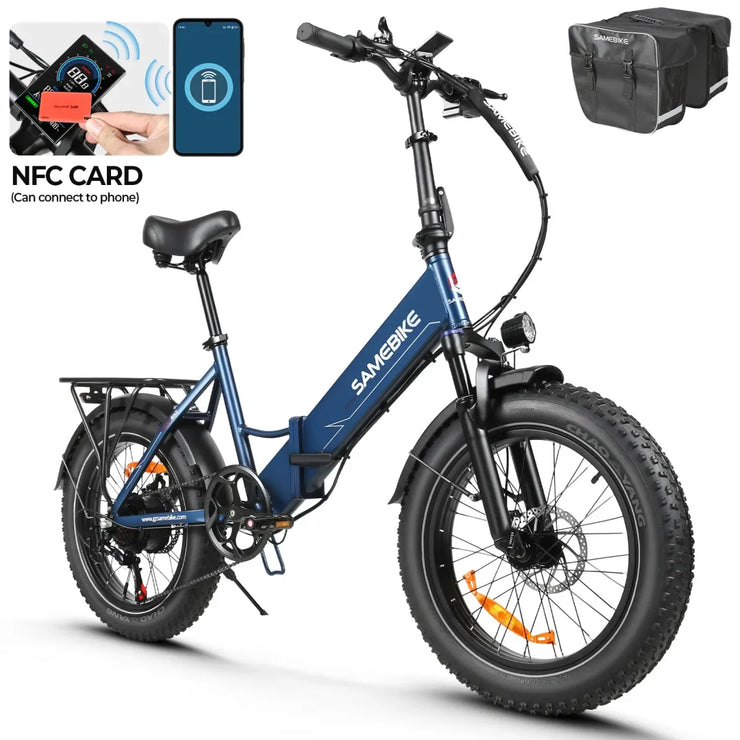

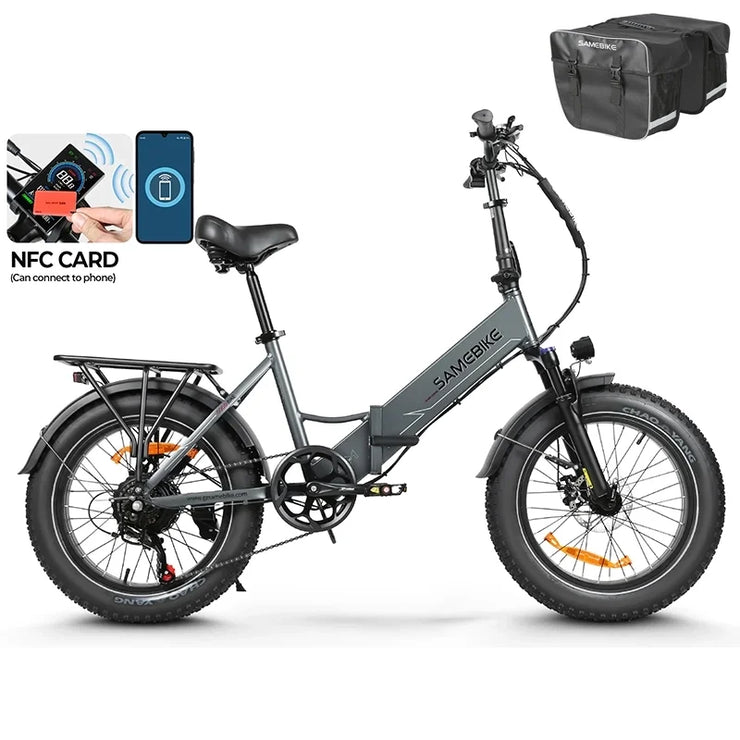

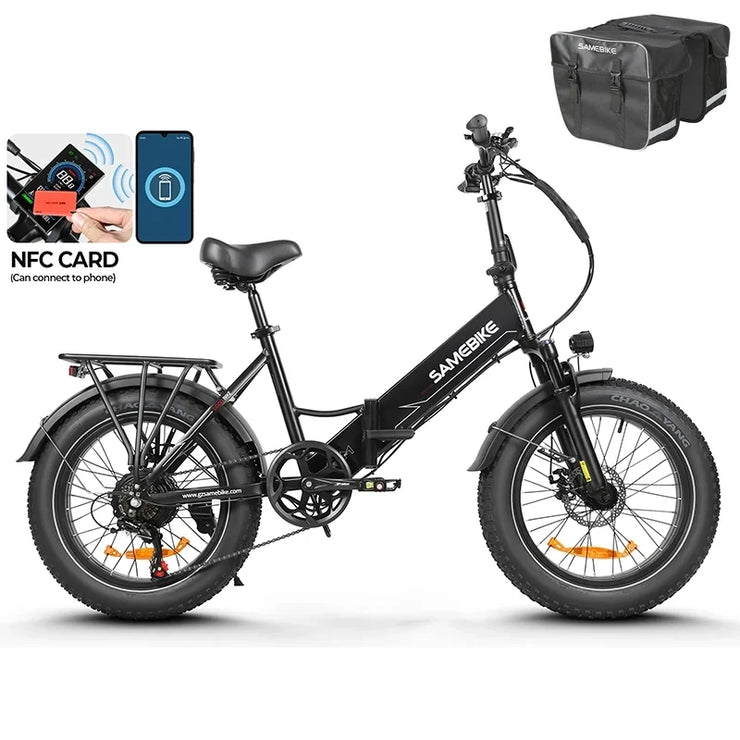

| Access & Display | NFC smart-key + color LCD |
| Lighting | 360° LED headlight & taillight, reflective strips |
| Seat | Widened, thickened saddle with spring shock absorber |

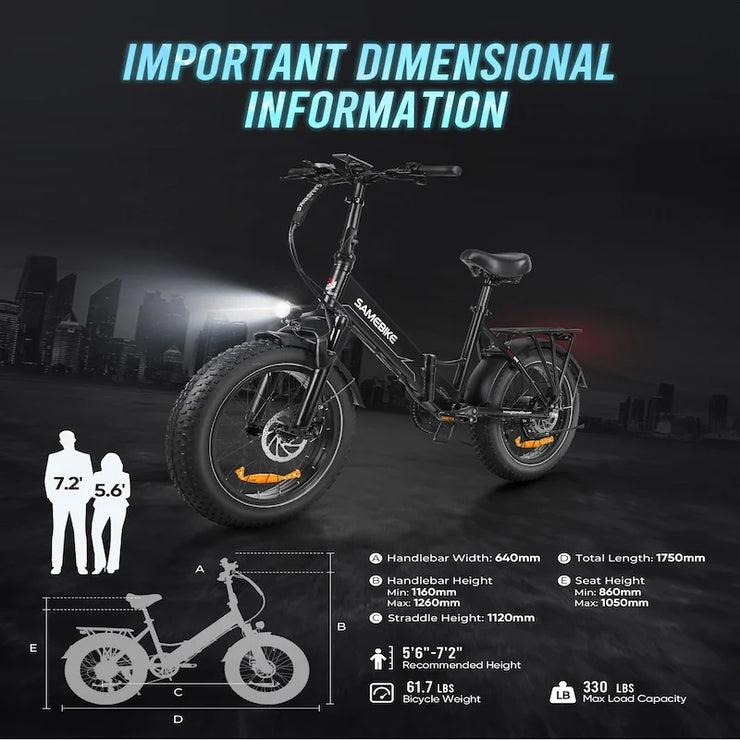

| Dimensions & Capacity |
Handlebar: 640 mm W, 1160–1260 mm H Straddle: 1120 mm, Length: 1750 mm Seat H: 860–1050 mm, Weight: 28 kg, Load: 150 kg Recommended rider height: 1.68–2.18 m |
| Folding | Three-step design — folds in 3 s for trunk & storage |
Frequently Asked Questions
How do I turn on the bike?
Attach a fully charged battery, turn the key or press the switch on the battery pack, then press and hold the LCD’s “M” button for 3–5 s to power on.
How do I switch the headlight on/off?
Long-press the UP button (PAS control) if there’s no dedicated light button on your display.
How quickly does it fold?
The three-step patented mechanism collapses the bike in about 3 s.
Can I remove the speed limit?
With the display off, twist the throttle fully, pull a brake lever, then power on and hold both throttle + brake together for 5 s.
What warranty do I get?
All SAMEBIKE e-bikes include a 1-year all-inclusive warranty covering parts & labor.
